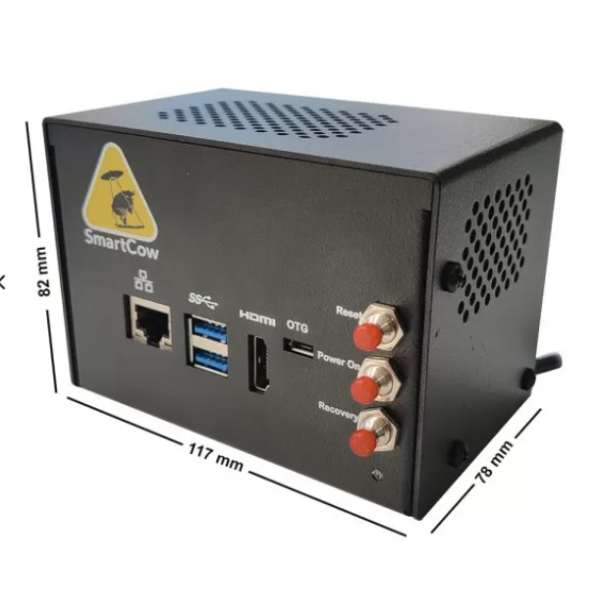

SmartCow Cerberus ANX - Complete system for the Nvidia Jetson Nano
Cerberus ANX is a compact design for NVIDIA® Jetson Nano / Nx Module.
NVIDIA® Jetson Nano is a small, powerful computer for embedded applications and AI IoT that delivers the power of modern AI.
This smallest System on Module (SOM) delivers big performance when it comes to deploying AI to devices at the edge across multiple industries. Compact and small form factor with industrial-grade components used, ensures its high-quality data transferring even at wide temperature ranging from -25°C to 80°C. This makes it ideal for space-constrained embedded applications in harsh environments.
Kit Contents :
- Carrier Board
- Jetson Nano 4GB RAM / 16GB Emmc
- Power Supply
Cerberus ANX is a compact design for NVIDIA® Jetson Nano / Nx Module.
NVIDIA® Jetson Nano is a small, powerful computer for embedded applications and AI IoT that delivers the power of modern AI.
This smallest System on Module (SOM) delivers big performance when it comes to deploying AI to devices at the edge across multiple industries. Compact and small form factor with industrial-grade components used, ensures its high-quality data transferring even at wide temperature ranging from -25°C to 80°C. This makes it ideal for space-constrained embedded applications in harsh environments.Kit Contents :
- Carrier Board
- Jetson Nano 4GB RAM / 16GB Emmc
- Power Supply
Technical Specifications
Model SmartCow Cerberus ANX Module Compatibility Nvidia Jetson Nano / Nx Power Requirement 12V / 5A DC Dimensions 87.4 mm x 67.4 mm Operation Temperature - 25 ~ 80 ℃ Operation Humidity 10% ~90% Storage Temperature -40 ~ 125 ℃
I/O Storage 1x Micro SD card slot Video Outputs 1x HDMI Type A LAN 1x RJ-45 (Internal) Extension Slots 1x 2-Lanes MIPI CSI-II FPC 15 pins
1x 4-Lanes MIPI CSI-II FPC 36 pins
1x M.2 E Key 2230 USB 2x USB3.0 Type A
1x USB2.0 Micro AB Serial 1x RS-232 Others 1x Front Panel
1x 4-pin FAN connector
2x UART (1x Debug UART)
5x GPIO Certification CE and CCC
| Model | SmartCow Cerberus ANX |
|---|---|
| Module Compatibility | Nvidia Jetson Nano / Nx |
| Power Requirement | 12V / 5A DC |
| Dimensions | 87.4 mm x 67.4 mm |
| Operation Temperature | - 25 ~ 80 ℃ |
| Operation Humidity | 10% ~90% |
| Storage Temperature | -40 ~ 125 ℃ I/O |
| Storage | 1x Micro SD card slot |
| Video Outputs | 1x HDMI Type A |
| LAN | 1x RJ-45 (Internal) |
| Extension Slots | 1x 2-Lanes MIPI CSI-II FPC 15 pins 1x 4-Lanes MIPI CSI-II FPC 36 pins 1x M.2 E Key 2230 |
| USB | 2x USB3.0 Type A 1x USB2.0 Micro AB |
| Serial | 1x RS-232 |
| Others | 1x Front Panel 1x 4-pin FAN connector 2x UART (1x Debug UART) 5x GPIO |
| Certification | CE and CCC |
Related Products
Odroid XU4 - Octa Core
ODROID-XU4 Octa Core is powered by ARM® big.LITTLE™ technology, the Heterogeneous Multi-Processing (HMP) solution. ODROID-XU4 is a new generation of compu..
5Volt 6Amp Power Adapter suitable for Jetson Nano / Odroid XU4
5Volt 6Amp Power Adapter suitable for Jetson Nano / Odroid XU4Technical SpecificationsCurrent - Output 16 AmpEfficiency81 %Max Input Current1.4 AMax Operating Temperature60 °CMax Output Current6 AMax ..
Metal Case for Jetson Nano (with PWM FAN)
Metal Case with PWM Fan for Jetson Nano* image for reference ONLY, please check the package content for exact part list.Jetson Nano Developer Kit CompatibilityBoth Of The Original Version And B01 Vers..
IMX219-83 Stereo Camera, 8MP Binocular Camera Module for Depth Vision
Binocular Camera Module, Dual IMX219, 8 Megapixels, Stereo Vision, Depth VisionOverviewThis is a binocular camera module which features dual IMX219 cameras onboard, 8Megapixels of each camera. It is s..
SIM7600G-H 4G / 3G / 2G / GNSS Module for Jetson Nano, LTE CAT4
4G/3G/2G/GNSS Expansion Board For Jetson Nano, Based On SIM7600G-H, Global ApplicableOverviewThis is a 4G/3G/2G communication and GNSS positioning module designed for Jetson Nano, it supports global L..
IMX219-120 Camera, 120° FOV for Jetson Nano
IMX219-120 Camera For Jetson Nano, 8 Megapixels, 120° FOVFeaturesSupports NVIDIA Jetson Nano Developer Kit, Compute Module 3/3+8 MegapixelsSensor: Sony IMX219Resolution: 3280 × 2464Lens specifications..
Uninterruptible Power Supply UPS Module For Jetson Nano,Stable 5V Power Output
UPS Power Module For Jetson Nano, 5V Uninterruptible Power Supply, Multi Battery Protection CircuitsUninterruptible Power Supply For Jetson NanoPower Jetson Nano Seamlessly From Power Connection ..
AC8265 Wireless NIC for Jetson Nano, WiFi / Bluetooth
AC8265 Wireless NIC, 2.4G / 5G WiFi, Bluetooth 4.2, Applicable For Jetson NanoOverviewThis is a dual mode wireless NIC module applicable for Jetson Nano, supports 2.4GHz / 5GHz dual band WiFi and Blue..
Jetson Nano 2GB Developer Kit
Jetson Nano 2GB Developer KitDiscover the power of AI and robotics with the NVIDIA® Jetson Nano™ 2GB Developer Kit. It's small, powerful, and priced for everyone.Learning by doing is key for anyo..
9inch Capacitive Touch Monitor, 2560×1600 2K Resolution, IPS, Mini HDMI, Fully Laminated
9inch Capacitive Touch Monitor, 2560×1600 2K Resolution, IPS, Mini HDMI, Fully Laminated9inch Capacitive Touch Monitor, Mini HDMI Port, 2560×1600 2K Resolution, IPS Screen, Fully Laminated Toughened G..
Jetson AGX Orin Developer Kit
Bring your next-gen products to life with the world’s most powerful AI computer for energy-efficient autonomous machines. With up to 275 TOPS and 8X the performance of the last generation for multiple..
NVIDIA Jetson Xavier NX Module
Jetson Xavier NX delivers up to 21 TOPS for running modern AI workloads, consumes as little as 10 watts of power, and has a compact form factor smaller than a credit card. It can run modern neural net..
Standard Carrier Board for NVIDIA® Jetson™ Nano (Version B01)/Xavier NX Module
AVerMedia carrier board EN715 is designed for NVIDIA® Jetson Nano™ (Version B01)/ Xavier™ NX module and for the industry applications in the environment with the high physical space concern and operat..
NVIDIA Jetson Nano Module
Jetson Nano is a small, powerful computer for embedded applications and AI IoT that delivers the power of modern AI in a module. Get started fast with the comprehensive JetPack SDK with acce..
Nvidia Jetson Orin Nano Developer Kit with 8GB RAM
Product Description Transform Visionary AI Concepts Into Reality.The NVIDIA Jetson Orin Nano Developer Kit sets a new standard for creating entry-level AI-powered robots, smart drones, and intell..

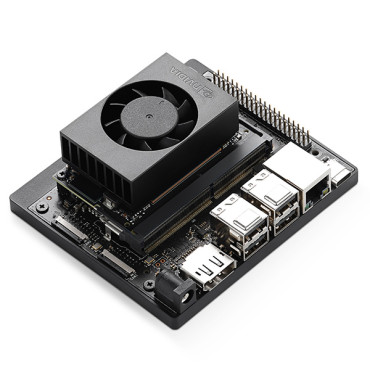

Jetson Orin Nano Super Developer Kit
